Product Details
Place of Origin: China
Brand Name: JingGong
Certification: ISO9001:2008
Model Number: JG90Z
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: US $30,000.00/ 1-2 Pieces US $29,000.00 /3+ Pieces
Packaging Details: Nude Packing
Payment Terms: T/T
Supply Ability: 3000sets/Year
Color: |
Orange/ Yellow |
Application Field: |
Agriculture, Forestry |
Boom Length: |
3680mm |
Origin: |
China |
Arm Length: |
2000mm |
Certification: |
ISO9001:2008 |
Color: |
Orange/ Yellow |
Application Field: |
Agriculture, Forestry |
Boom Length: |
3680mm |
Origin: |
China |
Arm Length: |
2000mm |
Certification: |
ISO9001:2008 |
Product Description

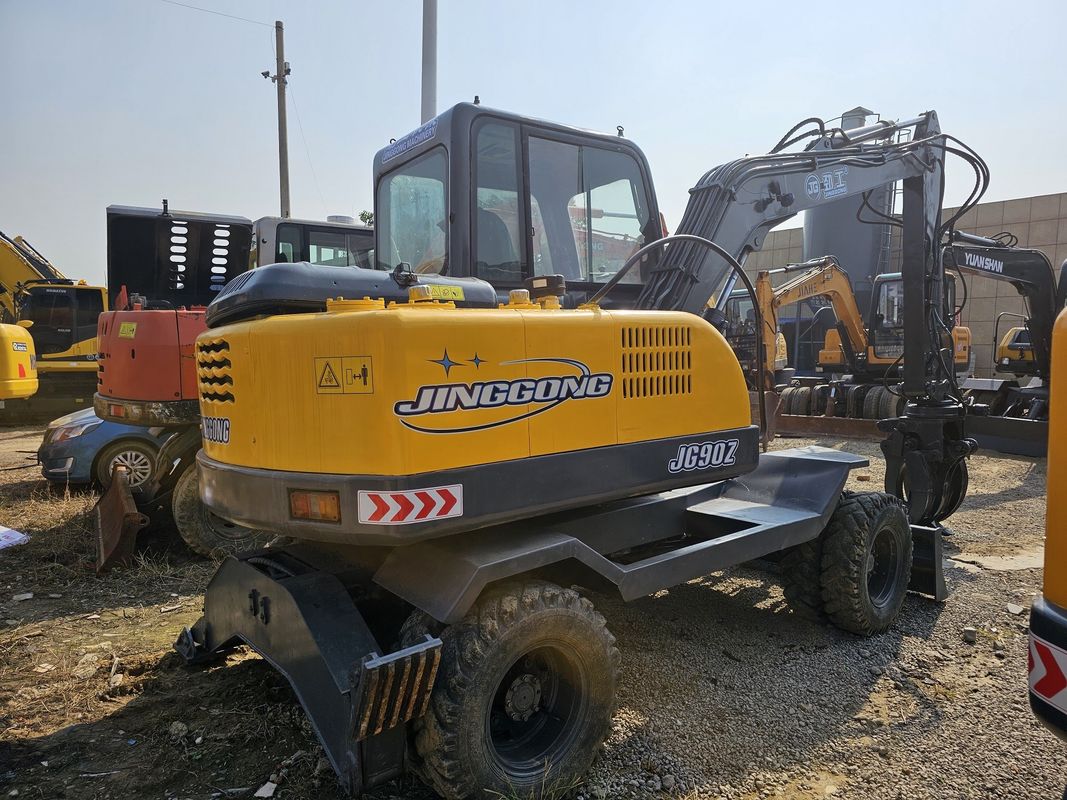

CE Certification Jg90z Wastemaster Wheeled Excavator Machine Grapple Bucket for Waste Recycling
JG90Z is one of the most popular grapple wheel excavators of our company. As early as 2009, we had
started our research and design of it. After years of careful innovation and trials, this excavator now
shows excellent working efficiency and stable performance, contributing to a wide application in China
and Southeast Asia.
The grab has a 360° rotation angle, realizing a significant decrease in loading and unloading time and cost of woods,
sugarcanes or other similar materials.
In addition to this, it also provides a high degree of security and safety and brings abundant social and economic benefits
to clients.
The interior of the cab is equipped with joysticks, electrical switches, monitoring panels, air conditioners and radios, etc.
The driver's seat can be adjusted according to the driver's requirements. The use of strong environmentally friendly glass
has the characteristics of high strength, UV protection and good sealing performance. The driver's cab with super wide field
of view ensures good visual effects.
SPECIFICATIONS
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom Length | 3475mm | ||||||||
| Arm Length | 1850mm | |||||||||
| Max Radius Of Capture | 6800mm | |||||||||
| Grab The Biggest Opening Width | 1200~1500mm | |||||||||
| Grab The Minimum Opening Width | 100~300mm | |||||||||
| Maximum Radius Weight Capacity | 0.5~0.6t | |||||||||
| Grapple Rotation Angle | 360° | |||||||||
| Max Dumping Height | 4700mm | |||||||||
| Back-End Radius Of Gyration | 1980mm | |||||||||
| DIMENSION | (Length*Width*Height) Travel Position | 6000*2100*2850mm | ||||||||
| Wheel Base | 2400mm | |||||||||
| Track(Front/Rear) | 1660mm/1580mm | |||||||||
| Ground Clearance Of Counterweight | 1060mm | |||||||||
| Min Ground Clearance | 265mm | |||||||||
| TECHNICAL PARAMETERS | Angle Of Rotation | 360° | ||||||||
| Machine Weight | 6800kg | |||||||||
| Engine Model | YN38GB2/4102 | |||||||||
| Rated Power | 58.8kw | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic System Working Pressure | 21Mpa | |||||||||
| Hydraulic system flow | 110L/min | |||||||||
| Metering gear pump | 2*25ml/r | |||||||||
| Grapple Swing Speed | 12r/min | |||||||||
| Walking Speed | 25km/h | |||||||||
| Grade Climbing Ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Revolution overdrive pressure | 16Mpa | |||||||||
| Full Circle Swinging Time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
PRODUCT DISPALY
PACKING&SHIPPING
FAQ
WHAT ARE OUR ADVANTAGES COMPARED WITH TRADING COMPANIES?
1. Competitive Price -- We a Chinese leading manufacturer of Wheel Excavators, Crawler Excavators, Sugarcane
Harvester, Sugarcane Grabber Wheel Loader, and Wood Clamping Wheel Loader with good quality, professional
service and lower price.
2. Quick Response -- Our team is consisted of a group of diligent and enterprising people working 24/7 to respond
client inquiries and question all the time. Most problems can be solved within 12 hours.
3. Fast Delivery -- Normally it will take more than 30 days to produce the ordered machines, while we have a variety
of resources, locally and nation widely, to receive machines in timely manner. In 70% circumstance, we can have
an immediate delivery of regular machines for our clients
4. Sole Agent wanted-You may apply our sole sales agent of our factory in your country, if there is no agent yet in
your local area, to open your market working together.
